Understanding L1, L2, and L3 Caches: How to Improve CPU Performance
Introduction
Understanding the importance of memory caches is critical in today’s computing world, where speed and efficiency are key. Memory caches are like hidden weapons that CPUs (central processing units) deploy to speed up data access and instruction execution. L1, L2, and L3 caches are the most popular types of caches. In this blog, we’ll go over the three types of caches and illustrate their applications using real-world examples.

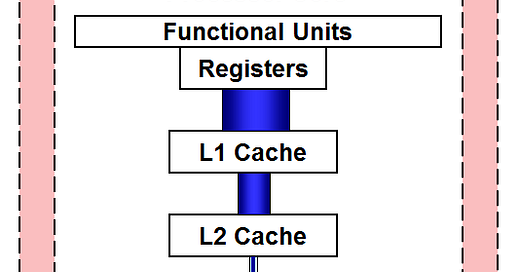

L1 Cache: Lightning-Fast Access
Size: Typically 16KB to 128KB per core (L1i and L1d caches).
Use Case: The smallest yet fastest cache level is L1. It is often separated into two sections: L1i (instruction) and L1d (data). The L1 cache’s principal function is to store frequently used instructions and data for rapid access by the CPU. Consider it a hidden cache of instructions and data that the CPU frequently accesses.
Example: The L1 cache saves key game instructions and frequently requested game data when you’re playing a video game. This ensures that the CPU can execute game logic quickly, resulting in smooth gaming without the need for continual data fetches from slower main memory.
L2 Cache: Bridging the Gap
Size: Typically 128KB to 1MB per core.
Use Case: L2 cache sits between the ultra-fast L1 cache and the slower main RAM. It provides more storage space for frequently requested data and instructions, minimizing the requirement for the CPU to access main memory. L2 cache may be shared among CPU cores in some multi-core architectures.
Example: Assume you’re using picture editing software to edit a high-resolution image. The L2 cache stores frequently used picture data, allowing the CPU to access it quickly. Because the CPU does not have to continuously request image data from slower RAM, the editing process is sped up.
L3 Cache: The Shared Resource
Size: Typically 2MB to 16MB or more, shared among CPU cores in multi-core processors.
Use Case: In a multi-core processor, the L3 cache is a shared resource for all CPU cores. It creates a shared cache space for commonly used data and instructions, allowing for efficient data sharing between cores. This is critical for keeping CPU performance high in multi-threaded and multi-core programs.
Example: Multiple CPU cores on a server running a database application are executing queries at the same time. The L3 cache contains frequently requested database tables and indexes, ensuring that all cores have speedy access to the information they require. This shared cache aids in the preservation of database performance and responsiveness.
In conclusion, L1, L2, and L3 caches all play important roles in increasing CPU performance. L1 cache offers rapid access to crucial instructions and data; L2 cache bridges the gap between L1 and main memory; and L3 cache serves as a shared resource in multi-core systems. These caches work together to ensure that CPUs can access and process data efficiently, resulting in faster and more responsive computing experiences.
Remember the secret heroes—the L1, L2, and L3 caches—who work behind the scenes to make it all possible the next time you marvel at your computer’s performance.
